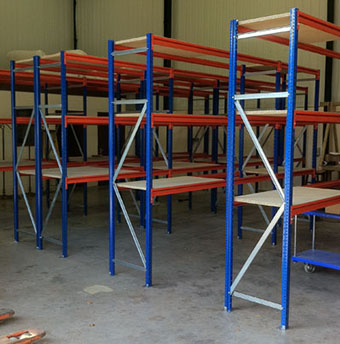

Probably one of the most versatile and robust shelving systems on the market.

Perfect for :

• Archive Box Storage.
• General Storage of Goods.
• Parts Storage
• Workbenches

Sizes

• Beam lengths upto 2400mm*.
• Standard Frame Height is 2000mm*.
• With depths of 400mm, 600mm and 800mm*.

*Larger sizes are available to order.

*Shelf levels are capable of carrying upto 600kg depending on shelf depth and width.

Construction

Uprights feature horizontal and diagonal bolted bracing panels to form a frame.

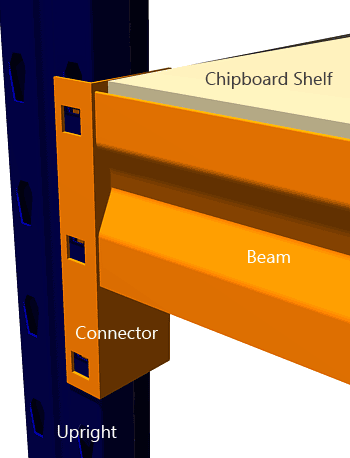

Once the frame is stood vertically the beam with its welded connectors both ends simply hooks onto the slots in the upright and engage with the teeth on the rear of the beam connector (see opposite).

A locking pin is inserted to prevent beam from disengaging.

Finally once the front and back beams are in place the chipboard shelf is lowered in place.

Shelf levels are easily adjustable by reversing the process.

Call for a quick quote on any configuration and quantity.

or email sales@storagedesignstelford.co.uk

We are always happy to visit site to discuss specific requirements. We will take some measurements and produce a working drawing for you all free of charge.
